1/8 Scale Nitro Buggy:

Xray XB8 2004 - # 350000 (Radio Controlled Model Review)


Navigation: Sitemap  ▶  Manufacturers  ▶  Xray RC

History, Info (and How To Set-up Tips) for the Xray XB8:


  Introduced by Team Xray in August 2004, the 4WD XB8 buggy - # 350000 - is shaft driven, on an alloy plate chassis, with graphite upper plate, gear type differentials, coil spring over oil filled dampers, universal joint drive-shafts and a full set of 24 ball bearings.

Xray XB8
▼ Scroll Down for More Images ▼


  To race the Xray XB8, it needs to be tuned to perfection for better stability, precise steering and provide enough grip to keep you on the track when going around tight bends at high speed. Even the smallest adjustment can change the feel of a car and our simple to follow instructions will guide you to the best Set-up to get you to the front and keep you there.

ebay









Gas/Nitro Engines Body Shells Radio Transmitters etc Tires Wheels/Rims Electronic Speed Controllers Battery Packs / Chargers Electric Motors












Items For Sale:






Flags

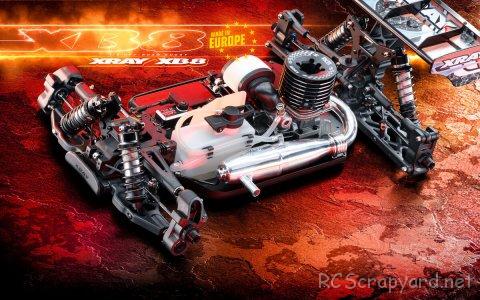

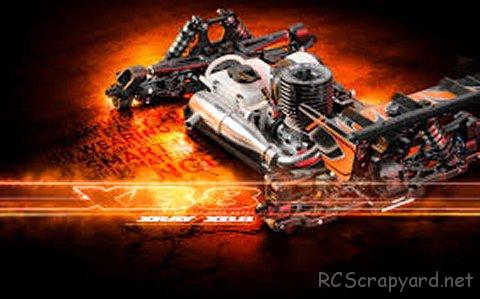

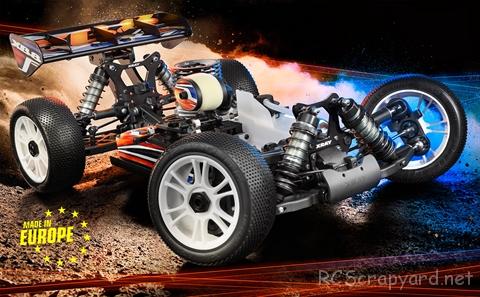

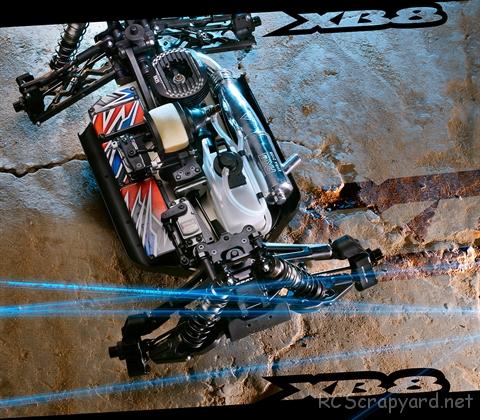

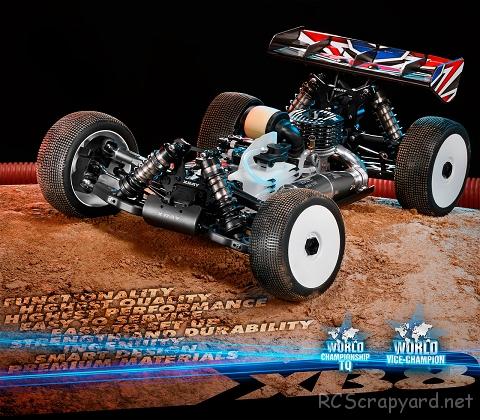

★ Xray XB8 2004 Chassis ★
Xray XB8 2004 Chassis

★ Xray XB8 2004 Chassis ★
Xray XB8 2004 Chassis

★ Xray XB8 2004 Chassis ★
Xray XB8 2004 Chassis

★ Xray XB8 2004 Chassis ★
Xray XB8 2004 Chassis


Buying a Used Xray XB8 Buggy (and What to look for)


   Buying a used Xray XB8 Nitro Buggy, or any used RC Model, has a number of advantages. It is generally cheaper than new, ready built and may come with a variety of expensive hop-ups already installed. Cheap, pre-loved bargains are always becoming available. However, depending on the age of your purchase, it may need a little tender loving care before you can take it out on the back yard.

   The one thing you will always need is an instruction manual. If not supplied with your purchase, they can often be downloaded from the Xray website, or purchased separately on eBay. With an instruction manual, any problems with your model Buggy you may discover can easily be fixed.

Dampers
   When you receive your used Xray Buggy, make a general visual inspection of the chassis, front and rear wishbones, suspension shock towers etc, for any broken parts that may need to be replaced. Then, take a screwdriver and box spanner and check each self tapping screw and nut for security, taking care not to over tighten.

   Next, for those Xray models with oil filled shock absorbers, remove them from the chassis and dismantle the coil springs. The damper shafts should push in and pull out with a smooth action. If you feel a jolt as you change direction, this means the oil has leaked out and must be topped up. At the same time, change the O-Ring seals to prevent more leakage. Also check the damper shafts for damage. If they are scratched, change them as soon as possible.

   If the body shell of your Xray XB8 is broken, ripped or damaged in any way, this can be easily repaired with rubber solution glue. Also, for added protection and if available for your XB8 model, fit an under guard to stop dirt and gravel entering the chassis.

Titanium Turnbuckles
   Examine the drive shafts for wear and replace as required. If possible, change them for titanium. The steel shafts wear and bend too easily.

   If you intend to race your XB8 Buggy model at a competitive level, I would also recommend you obtain and fit titanium pivot shafts, turnbuckles, tie rods and steering rods.

   The gearbox of your used Buggy should be opened up to check for gear wear and lubrication. A thin coat of grease is often used on internal gears and although this is fine for basic running around on the back yard, if you intend to race your Buggy at a higher level, this should be removed and replaced with racing oil (ZX1 or Teflon Oil). Of course, this should be reapplied after each race meeting.

Spur Gears
   Gears are a weakness on all Buggy RC models. Head on collisions can easily damage the gear teeth on nylon and plastic spur gears. Heavy impacts can also loosen the nuts or self tapping screws that hold the Nitro Engine in Position, allowing the pinion gear to pull out of mesh slightly and rip the tops off the teeth on your spur gear. To minimise this possibility, fit bolts with locking nuts to the Nitro Engine mount and remember to check them for security after every two or three runs.

   Ball joints always cause problems. For top level Nitro Buggy racing, the plastic ball connectors should be checked and if deemed necessary changed after every meeting. A simple thing like a loose fitting connector popping off could easily end your race, so better safe than sorry.

Servo Gears
   The XB8 steering servo is also prone to damage. In high speed crash situations, the fragile gear teeth of the servo can be broken off, rendering your expensive servo useless, so be sure to obtain a good quality "Servo Saver". Check out my Servo Information article.

   If body roll on your Xray XB8 is a problem, handling can be improved with the use of stabilizers, anti roll or sway bars, stiffer tuning springs and, or, thicker silicone oil in the dampers.

Ball Bearings
   If your used Xray Buggy comes with plastic and sintered brass bushings (ring type bearings), check the shafts that run in them for wear. Dust and grit can get into these bearings and abrade the shafts. Therefore, you should replace them all with shielded ball bearings. If the model has been run with ring type bearings, you may have to change all the axles and driveshafts. For more information, take a look at my article, How to get the best from your Bearings.

   Finally, good luck with your XB8 model and good racing.


▼ Scroll Down for More Articles and Advice ▼

Or, check out our RC Model Car Setup Guide


^ TOP ^












Manufacturers and Brands Catalogued and Listed by RC-Scrapyard.


   At present, the RC Model Manufacturers, Brands and Distributors covered by us are: ABC Hobby, Academy, Acme Racing, Agama Racing, Amewi, Ansmann Racing, ARRMA, Team Associated, Atomic RC, Axial, AYK, Bolink, BSD Racing, Capricorn, Carisma, Carson, Caster Racing, Cen, Corally, Custom Works, Durango, Duratrax, ECX - Electrix, Exceed RC, FG Modellsport, FS-Racing, FTX, Fujimi, Gmade, GS-Racing, Harm, HBX, Helion, Heng Long, Himoto Racing, Hirobo, Hitari, Hobao, Hong-Nor, Hot Bodies, HPI, HSP, Intech, Integy, Jamara, JQ Products, Kawada, Kyosho, Losi, LRP, Maisto, Mardave, Marui, Maverick, MCD Racing, Megatech, Mugen, New Bright, Nichimo, Nikko, Nkok, Ofna, Pro-Pulse, Protech, PTI, RC4WD, Redcat Racing, RJ-Speed, Robitronic, Schumacher, Seben, Serpent, Smartech, Sportwerks, Step-Up, Tamiya, Team-C Racing, Team Magic, Thunder Tiger, Tomy, Top Racing, Traxxas, Trinity, Tyco, Vaterra RC, Venom, VRX Racing, WLToys, X-Factory, Xmods, Xpress, Xray, XTM, Yankee RC, Yokomo, ZD Racing and Zipzaps.

   This is an ongoing project, with new and "lost in time" RC Model Brands being added as they are found and although most of those listed above have been covered in relative detail, some are still being researched and will be completed in the near future.


















Hints and Tips

Emergency Plastic Part Repairs

   It always happens when you least expect it. You are racing hard; and suddenly some idiot decides to side swipe you' and break your front wishbone. Even though you may carry spare parts for just about everything on your car, it always seems to be the same part that breaks and although you made a mental note the last time it happened to get a replacement you soon realise those mental notes were not worth the paper they are written on.

   So there you are, in the middle of nowhere with no spares. You ask around and no one has anything like your car, least of all parts for it and the closest model shop is 100 miles away. What are you supposed to do now?

   Some kind of repair is your only option.

   The one thing quite a few people think of first is superglue, but that kind of repair won't even get you around the first corner.

   What you need is something much stronger and the only way you can do that requires a good quality soldering iron, the plastic sprue (the bit left over when you remove all the parts for your car) or another broken part made from the same plastic.

   Using the largest tip you have, set the temperature so that it melts the plastic, but does not vaporise it. Place your broken part on a flat surface that will not be affected by the heat from the iron. I use the glass plate I have for setting the wheel camber of my model. Next, cut a piece of scrap plastic long enough for you to be able to hold on one end, as you work with it and place it over the break. At the point directly over the break, carefully melt the scrap plastic until it is around one millimetre above the break.

   Gently slide the iron sideways, depositing the scrap plastic about five millimetres either side and around the break. At each end of the fix, try to meld the scrap and broken part plastic. Picking up the broken part, continue the melding around each side of the break, then place it down the flat surface and repeat the process on the other side.

   When satisfied, switch off the iron and allow the plastic to cool. Using a modelling knife, carefully, cut away any excess plastic, but not too much.

   With a little practice a fix like this can be almost as strong as a new part and can save you a whole lot of anguish.

For More Setup Information check out my Hints and Tips page.







Hints and Tips

Tire Compounds

   Way back in the early 1990s when I first got into RC, most of the off-road models available came with chunky hard compound block tires that gave little or no grip on grass or dirt tracks. On-road didn't have this problem as they were still using sponge tires that with a coating of wintergreen based tire additive before each race to improve grip. There was even one guy who swore, before every race, he dipped his wheels in a glass of light ale.

   Then things started to change. By the mid 1990s tire manufacturers such as Losi and Schumacher began developing smaller pin tires, in softer compounds. These mini pin versions were a revelation for grass racers, but were only a small improvement on dust tracks.

   As new compounds were released, grip slowly improved. Then, with the release of the micro pin, super soft compound tires, off road was a completely different sport. Grip roll was now one of the problems drivers had to learn to contend with. This was something unheard of only a few short years before.

   Rubber Tires for On-road RC models had been around for a while in the early 1990s, but because sponge was so widely used, rubber never really caught on. Then, as Tamiya released its 1:10 on road models based on the off-road Manta Ray chassis, other manufacturers caught on and began producing their own 1:10 on-road cars. Schumacher released the SST 98, using the same gearbox and differentials as their Cat 2000 to reduce tooling costs. Tires were now being produced for this new scale in rubber. Pit Shimizu and Take-off were two of the leading RC on-road tire developers at the time, each releasing three different compounds, with recommended track temperature use. From that point on, on-road RC racing never looked back and the days of sponge and light ale came to a shuddering stop.

For More Setup Information check out my Hints and Tips page.
